Amiga RGB to S-Video Adapter

It was months ago on one of the Amigos Podcast episodes where I heard that John and Aaron were looking for a way to connect the A500 John has to his video capture device. They had purchased an A520 TV video modulator off eBay but it arrived DOA. I heard this and thought that it couldn’t be too complicated to build something that might help out. I was taught the basics of circuit design and assembly when I was in school and other than tinkering here and there I haven’t had much opportunity to put them to use. I started doing a little exploring and found a couple of posts on the English Amiga Board (post 1, post 2) where others had been doing the same thing and posted their circuit designs. I noticed at the heart of these circuits is the Analog Devices AD724 RGB to NTSC/PAL Encoder.

I examined the datasheet for the chip and it appeared to be a relatively easy circuit to assemble. I first re-drew the circuit so I would be more familiar with it. I then put together my parts list and started ordering.

Part
Unit Cost (CAD)
Project Need
Project Cost (CAD)
SOIC16 Wide to DIP adapter
$0.54
1
$0.54
AD724 NTSC/PAL RGB encoder
$2.03
1
$2.03
4-pin s-video female socket
$0.84
1
$0.84
RCA video socket (for Composite)
$0.34
1
$0.34
0.1uF 35V tantalum capacitor
$0.24
4
$0.98
10uF 25V tantalum capacitor
$0.18
1
$0.18
220uF 35V electrolytic capacitor
$0.07
3
$0.21
75 ohm 1/4W resistor
$0.03
6
$0.18
PCB
$0.67
1
$0.67
DB-23M
$5.72
1
$5.72
3.579454MHz crystal
$0.20
1
$0.20
30pF trim capacitor
$0.07
1
$0.07
Case
$4.02
1
$4.02
Rubber grommet (5/16″)
$0.22
1
$0.22
Total
$16.20

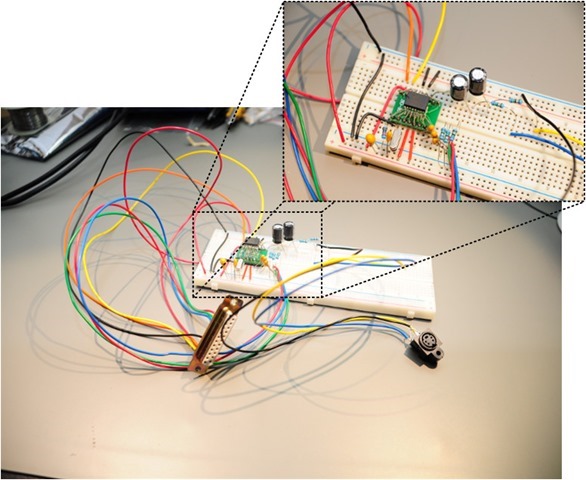

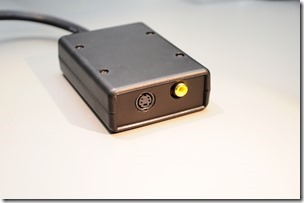

eBay was the cheapest place to order but it took forever for shipping as everything was coming from China. Though I did manage to pick up a few things at my local electronics shop. The first thing I did was breadboard a prototype circuit. You’ll notice right away the AD724 IC is up on “stilts”. Well….that’s what happens when I don’t pay attention to the datasheet for the AD724. I ordered the SOIC to DIP16 adapter PCB (the green board) but not the “wide” version, so I had to make do with what I had. I re-ordered a new adapter board, in case I need to make any others, which is being shipped now. The parts list above shows the correct adapter board. DSC_0308_resized_thumb6I plugged in the prototype into my A1200 and my Samsung plasma TV, crossed my fingers and turned everything on. It passed the first test, no magic smoke. 🙂 And after a short moment, I had a Workbench screen on my TV! Not satisfied with a boring black-and white Workbench 3.0 screen I immediately fired up a game I have on WHDLoad. Let there be the Misadventures of Flink! The colours were nice, not a lot of bleeding and for a prototype circuit I was very happy. Next was to take the components from the breadboard and put them on a PCB. I wish I had a nice cheap way to make PCBs but I don’t, so I had to use a pre-made PCB that is usually used for prototyping. All the components fit on a 5cm (2″) x 7cm (2.75″) PCB fairly easily. I tried out the new circuit and everything was still working! Nice! I adjusted the trim capacitor (the green circular thing near the cable that is zip-tied to the PCB) a bit to clean up a bit of noise and it was great. I was surprised at how poor the composite output was compared to the S-video output. But in the time of HDMI and everything digital I guess I’m spoiled. Finally, I needed to put it in the case. I notched the PCB so that it would sit secure in the case and drilled out the holes needed to expose the S-Video and Composite video connectors. And the final product looks like, (drumroll please).

Here is some actual output I captured on my TV. Sorry for the size, but an animated GIF get’s big fast. Changes that I would like to make are:

  • Have a switchable NTSC/PAL output option.
  • Have an LED to show when the adapter is powered on.
  • Use a better composite video connector. The one I used moves around too much for my liking.
  • Buffer the video input and put a DB-23F connector on the case so that a monitor could also be connected simultaneously as a TV to the S-video.
  • Get an actual PCB made up.

But those are all tasks for another day. I sent this adapter off to John and hopefully it will allow him to produce some Amigos Plays episodes on actual Amiga hardware. Finger’s crossed that it works for him!

2017-04-03 UPDATE

On request form tankboy I’ve attached a high-res version of the circuit schematic.  This circuit is for connecting to an NTSC S-Video display.

Amiga NTSC RGB to S-Video Adapter

Modifying to work with a PAL display shouldn’t be difficult:

  • Connect pin 1 (STND) of the AD724 to ground instead of +5V.
  • Replace the 3.579545MHz crystal oscillator with a 4.433619MHz one.  Pin 15 on the video connector is also a clock signal from the Amiga, so if you don’t have a crystal oscillator you could use that in a pinch.  But I found that the clock generated from an external crystal oscillator produced a better quality image.
